Description
🌱 Applications
- Fish paste production (surimi) 🍥
- Fish balls & sausages
- Seafood processing factories 🏭
- Pet food production
- Frozen food industry

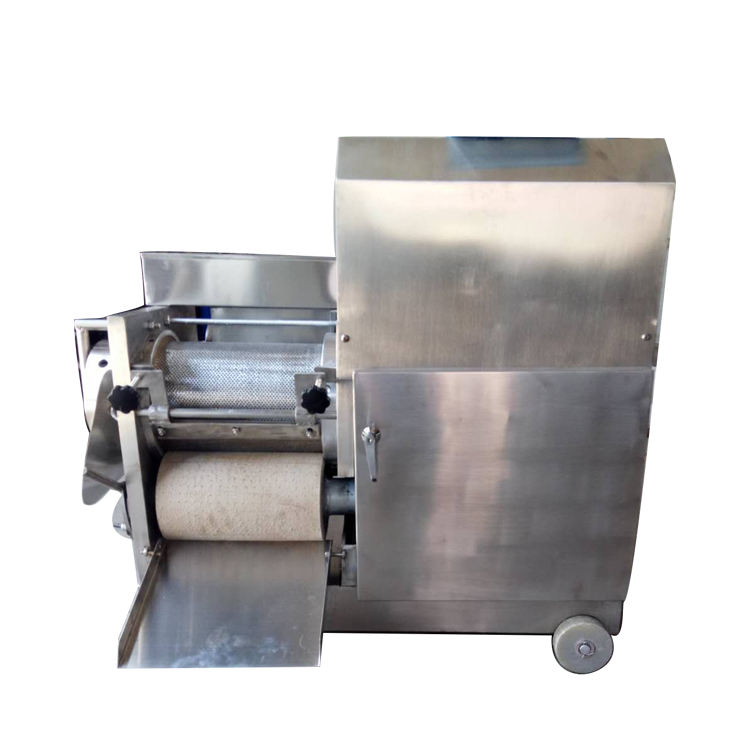

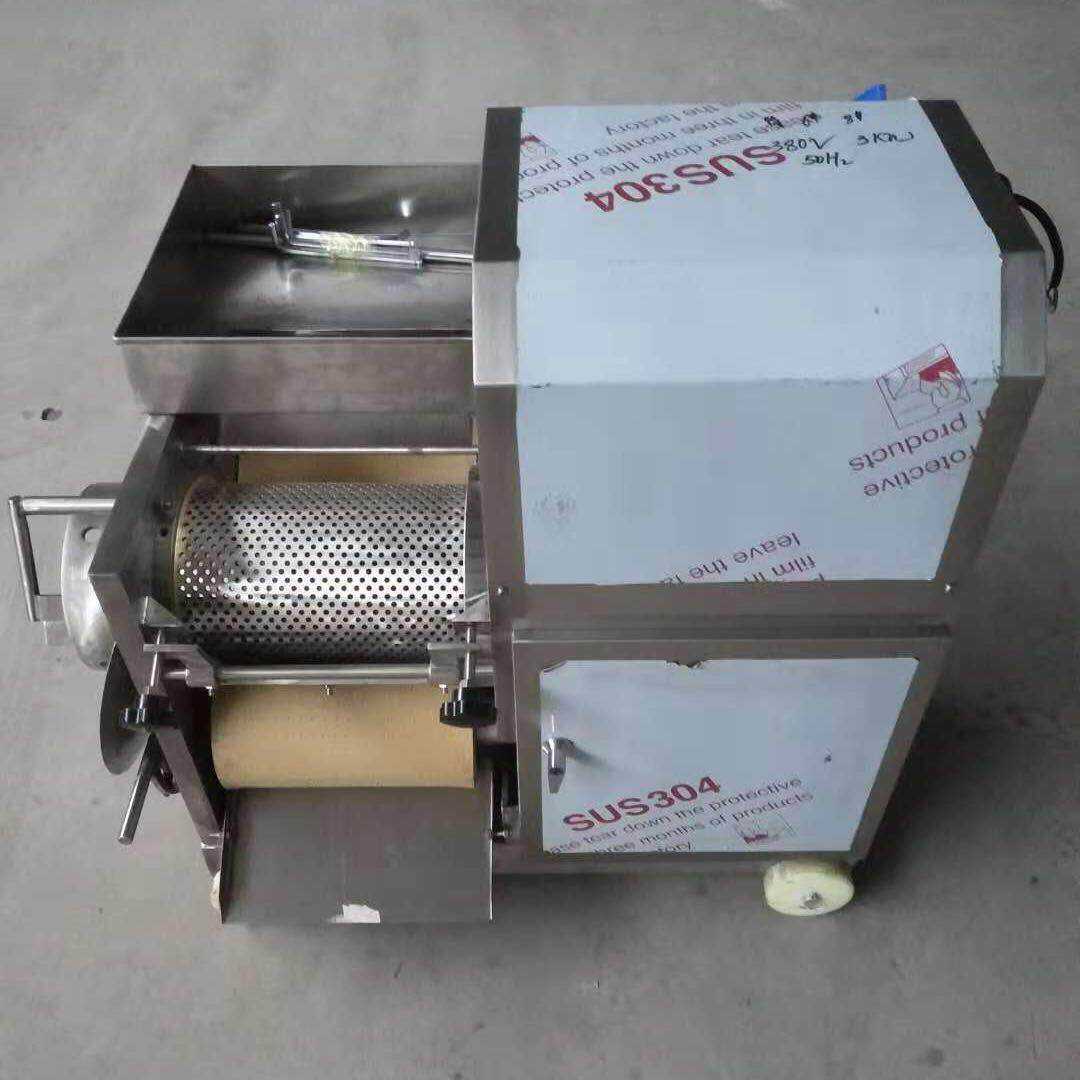

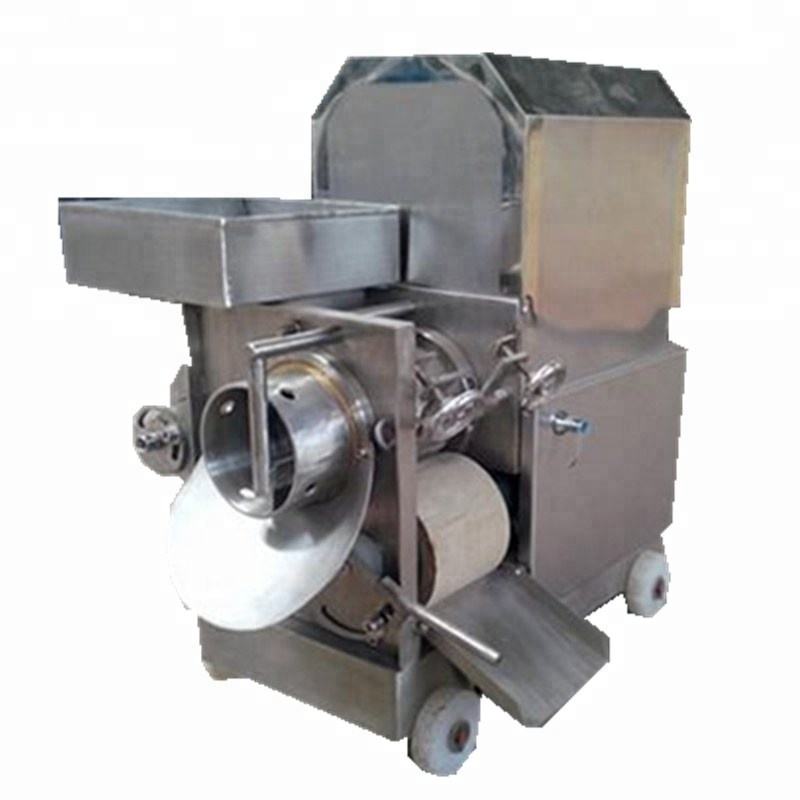

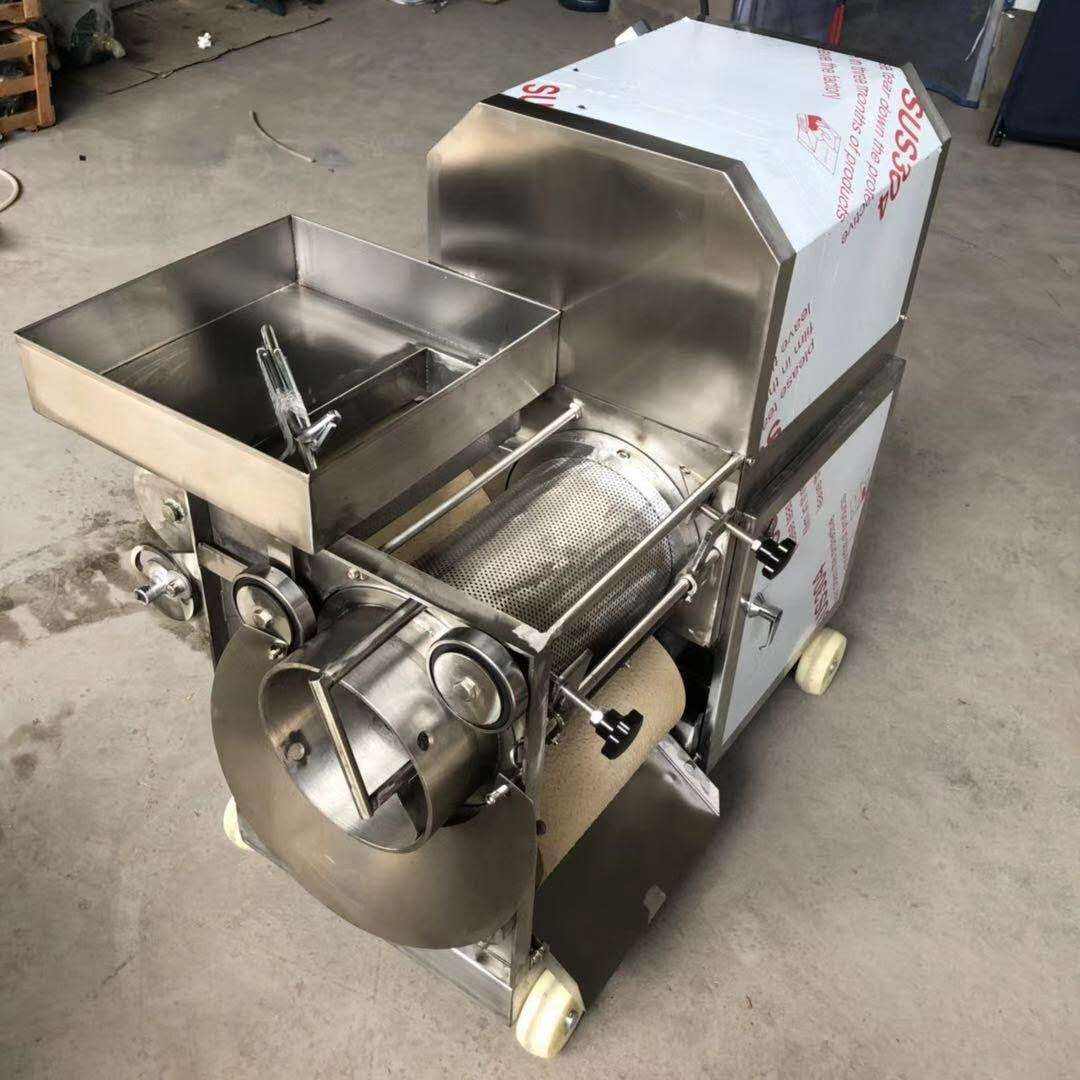

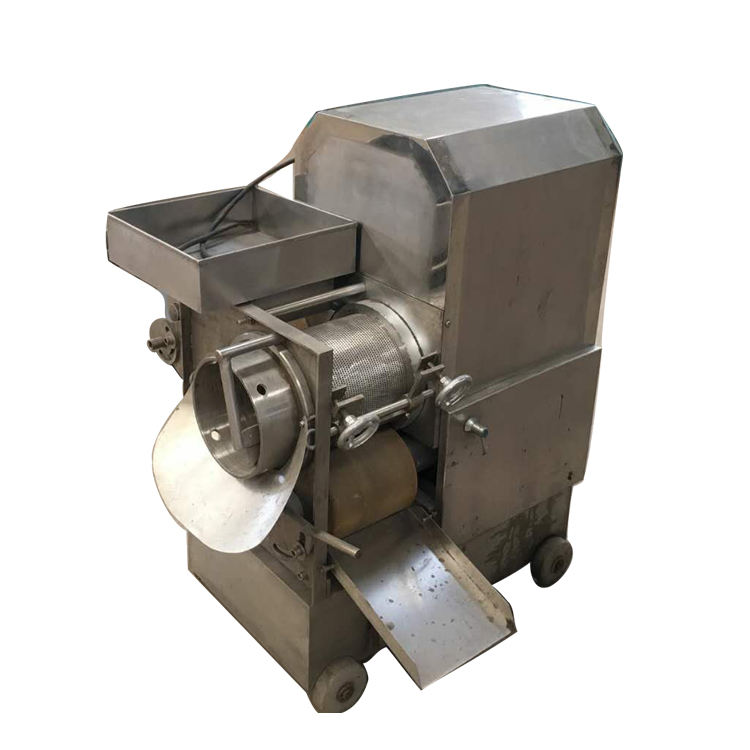

FISH DEBONER MACHINE (BONE SEPARATOR / MEAT PICKER)
🐟 FISH DEBONER MACHINE (BONE SEPARATOR / MEAT PICKER)
🔹 Short Explanation
A fish deboner machine is used to separate fish meat from bones and skin automatically, producing smooth minced fish paste.
It is widely used in fish processing industries to reduce waste and increase yield from fish.
⚙️ Specifications (Standard Model)
| Specification | Details |
|---|---|
| Type | Fish deboner / bone separator |
| Material | Stainless steel (304 food-grade) |
| Power | 2.2 – 7.5 kW |
| Voltage | 220V / 380V |
| Capacity | 100 – 1500 kg/hour |
| Separation Method | Rubber belt + perforated drum |
| Meat Yield Rate | 70% – 90% |
| Fish Size Range | Small to medium fish |
| Automation | Semi-auto / Fully automatic |
| Weight | 200 – 600+ kg |
👉 Some industrial models can process over 1 ton/hour, making them ideal for large-scale production.
⚙️ How It Works
- Fish is fed into the machine

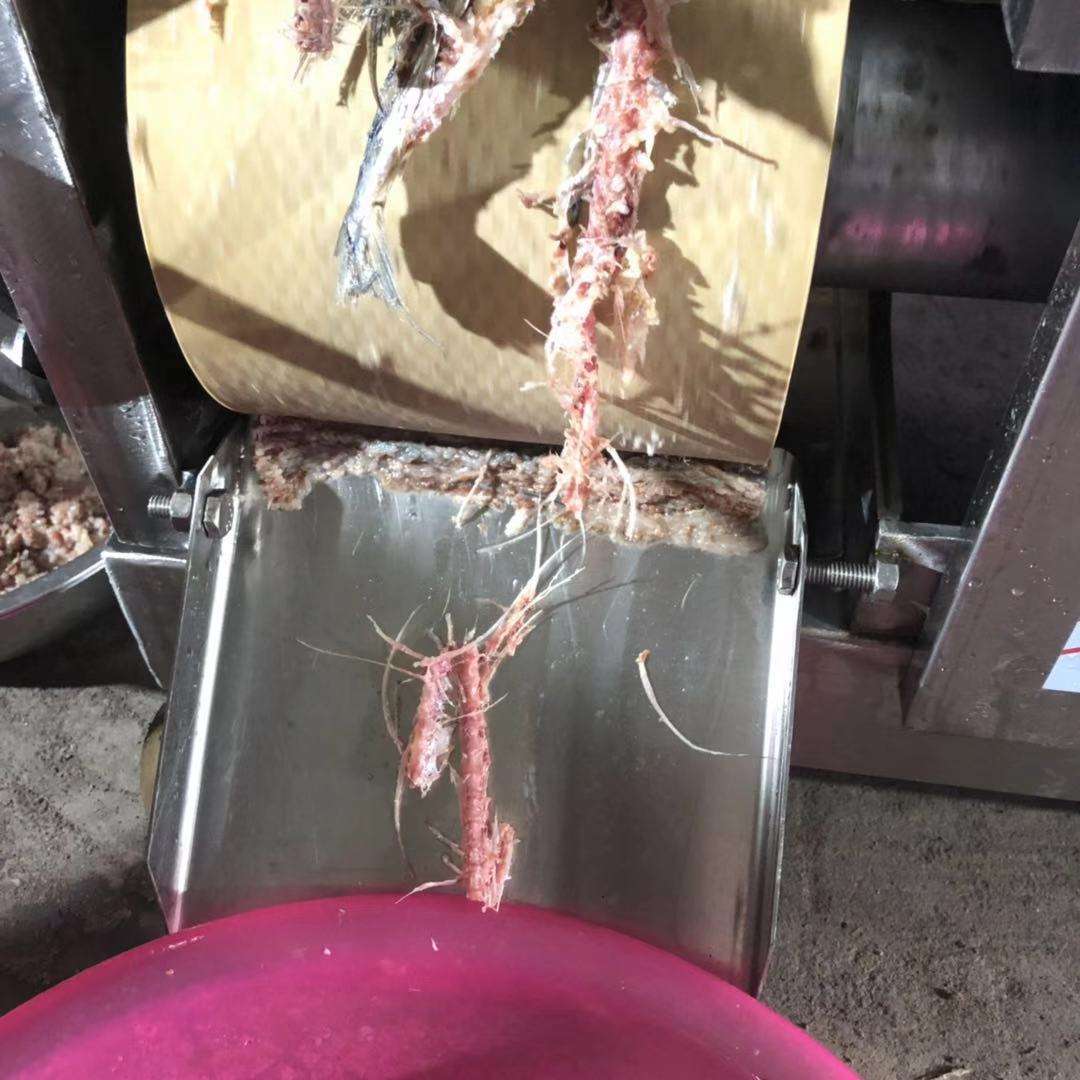

- Rubber belt presses fish against a perforated drum
- Soft meat passes through holes
- Bones and skin are separated and discharged
👉 This ensures maximum meat recovery with minimal waste.
💰 Price Range
- Small machines: $1,000 – $3,000
- Medium industrial: $3,000 – $8,000
- Large machines: $10,000+
