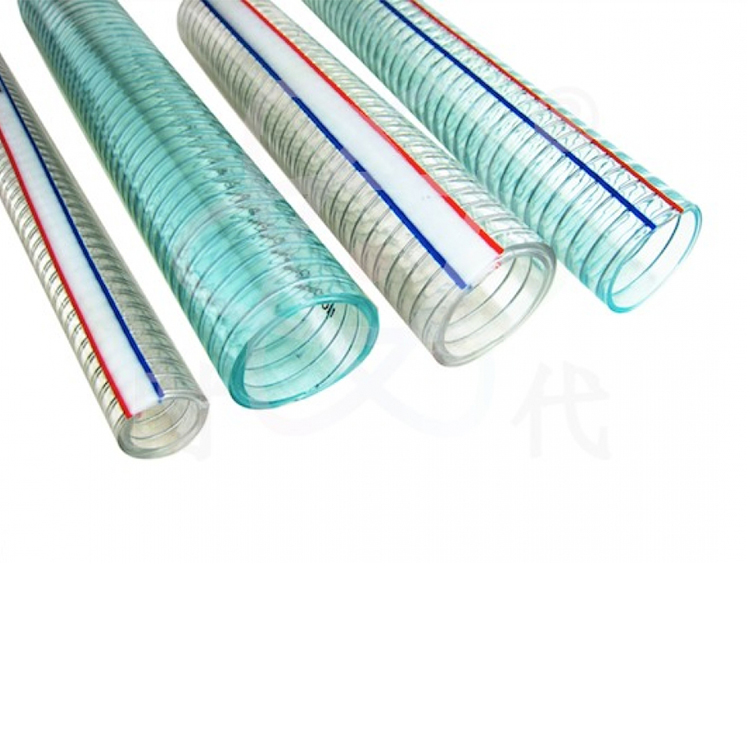

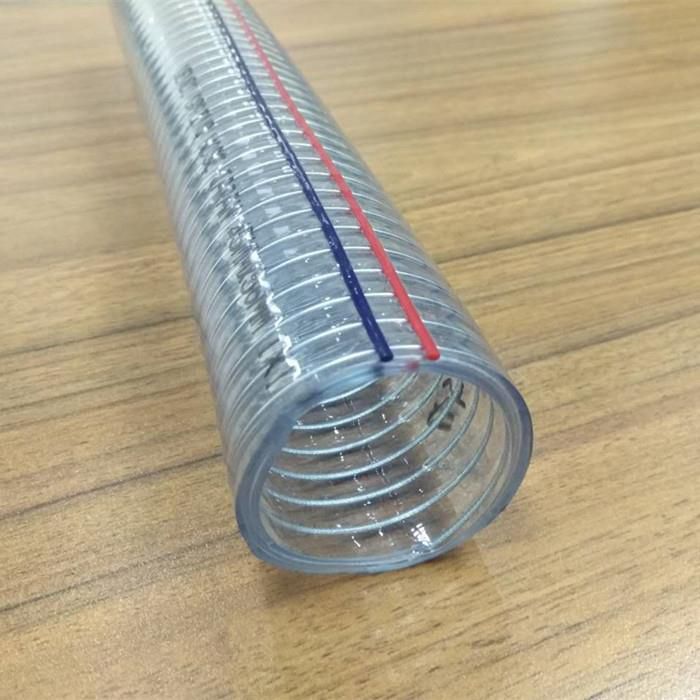

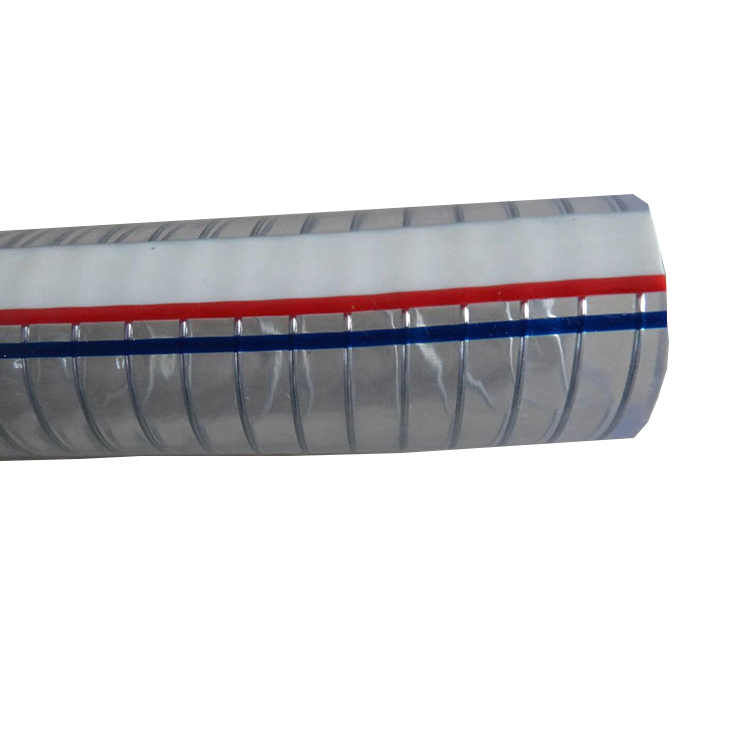

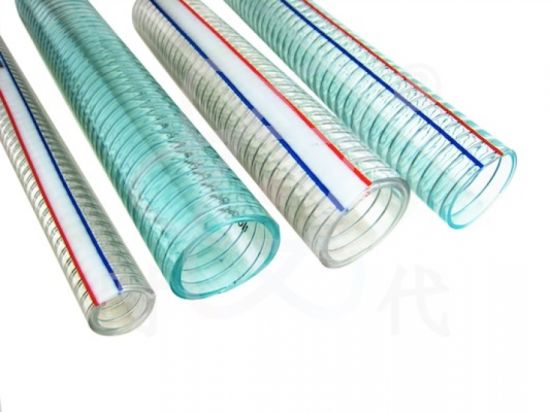

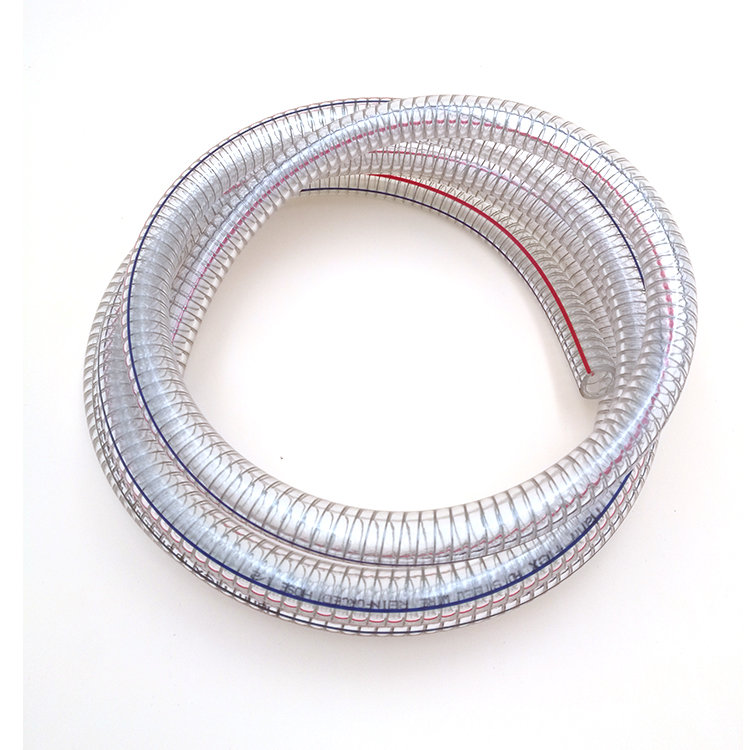

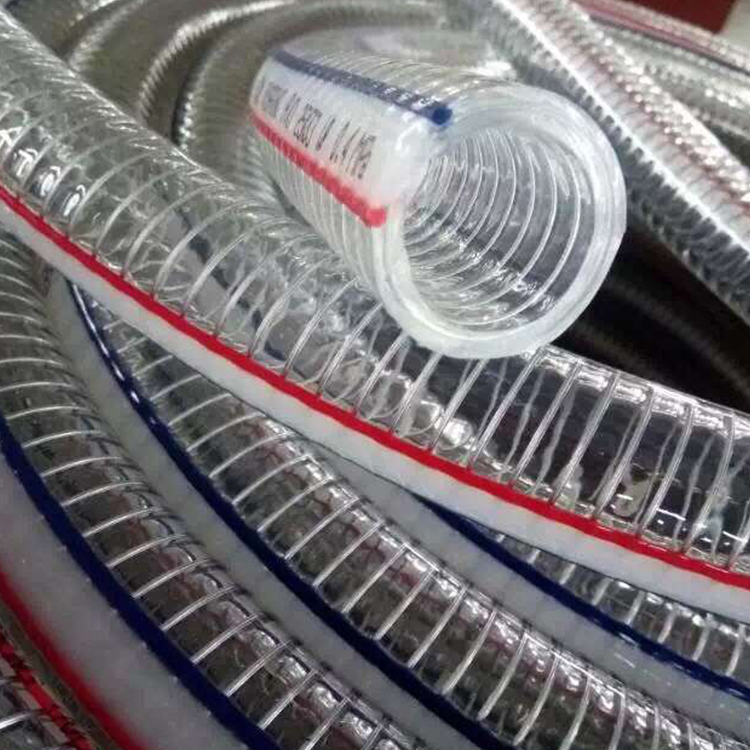

Reinforced PVC Flexible Spring Clear Suction Steel Wire Spiral Hose Pipe:

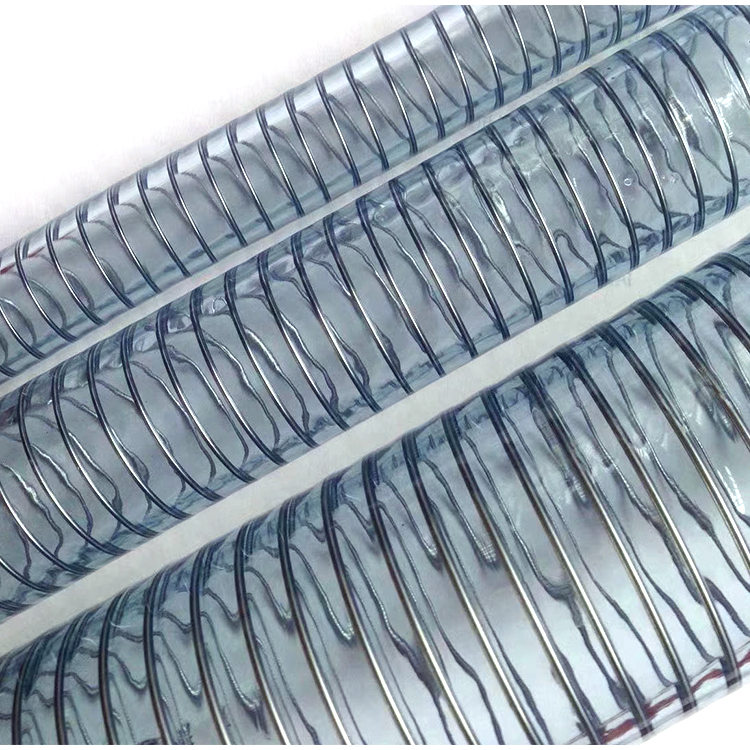

This reinforced PVC flexible suction hose is a heavy-duty, clear spiral hose reinforced with a spring steel wire helix. The transparent PVC wall allows for visual monitoring of material flow, while the embedded steel wire provides excellent crush resistance, kink resistance, and structural strength for vacuum and suction applications. This hose is highly flexible, lightweight, and resistant to abrasion, chemicals, and weathering. Ideal for industrial suction and discharge applications including water, slurry, dust collection, chemical transfer, food processing, and agricultural irrigation.
| Specification | Details |
|---|---|
| Material | PVC (polyvinyl chloride) with steel wire helix |

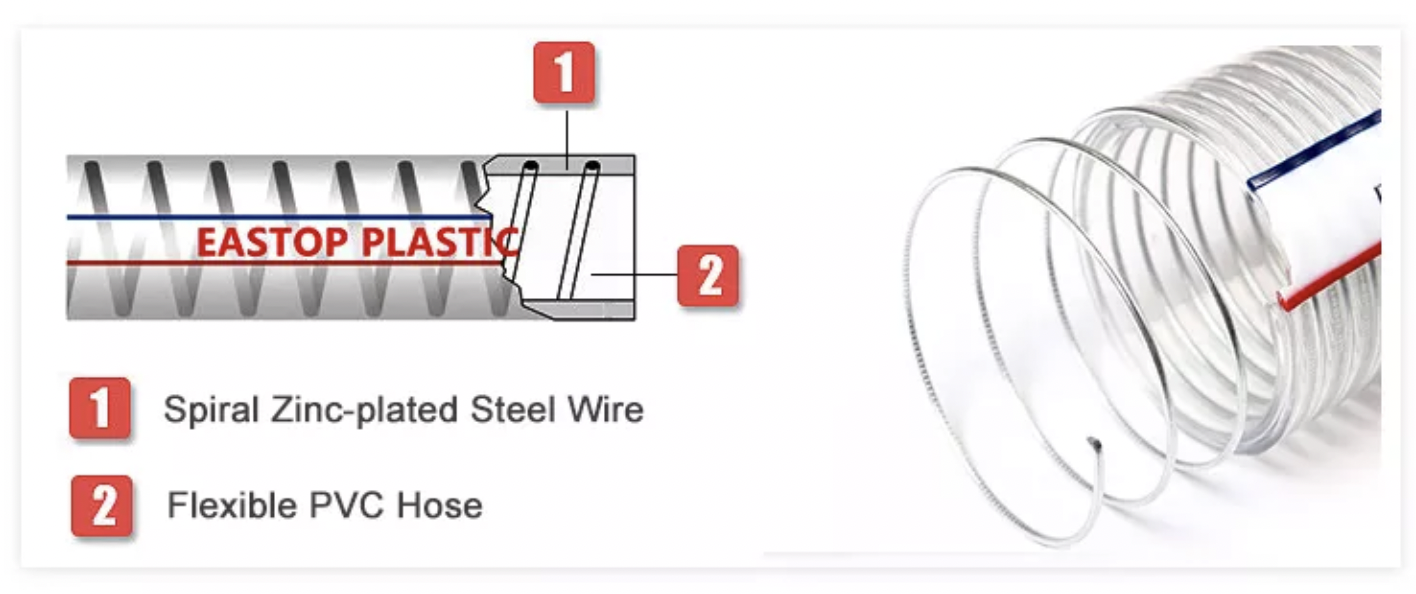

| Reinforcement | Spring steel wire spiral (embedded) |
| Wall Type | Clear, smooth bore for unrestricted flow |
| Inner Diameter Range | 10 mm – 300 mm (0.4 – 12 inches) |
| Wall Thickness | 2 mm – 10 mm (varies by diameter and pressure rating) |
| Working Pressure | 5 – 15 bar (70 – 220 psi) depending on size |
| Vacuum Rating | Up to 0.9 bar (full vacuum) |
| Temperature Range | -5°C to 65°C (23°F to 149°F) |
| Length | 10 m, 20 m, 30 m, or custom rolls |
| Hardness | 70 – 85 Shore A (flexible) |
| Standards | Food-grade compliant options available (FDA, EU) |
| Applications | Water suction, slurry transfer, dust extraction, chemical transfer, food and beverage, agriculture, construction |

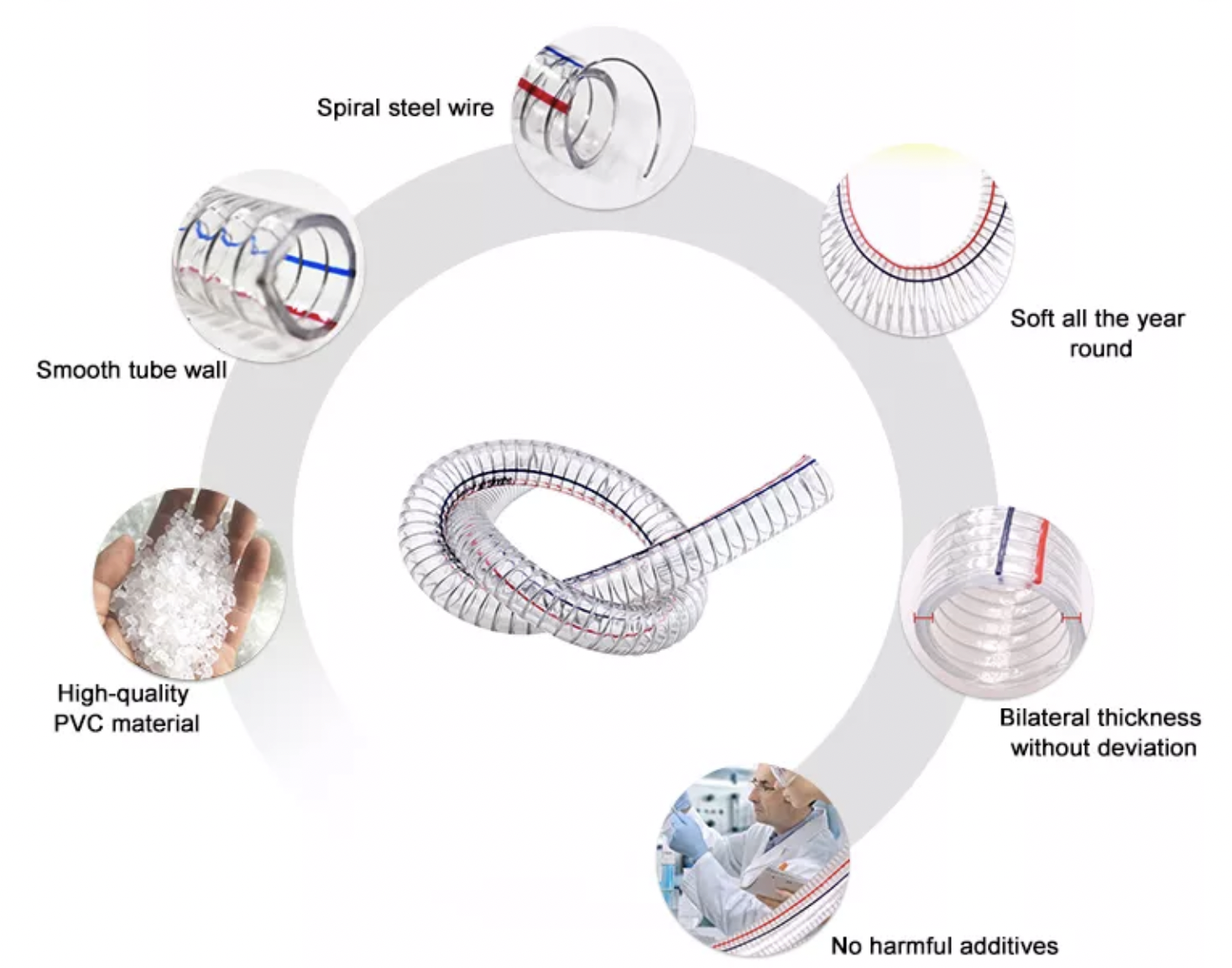

| Features | Kink-resistant, crush-resistant, abrasion-resistant, UV-resistant, lightweight |
| Inner Diameter | Price Per Meter (Approx.) |
|---|---|
| 25 mm (1 inch) | $2 – $5 |
| 32 mm (1.25 inch) | $3 – $7 |
| 38 mm (1.5 inch) | $4 – $9 |
| 50 mm (2 inch) | $6 – $12 |
| 65 mm (2.5 inch) | $8 – $16 |
| 75 mm (3 inch) | $10 – $20 |
| 100 mm (4 inch) | $15 – $30 |
| 150 mm (6 inch) | $25 – $50+ |
Prices vary based on inner diameter, wall thickness, pressure rating, food-grade compliance, and quantity ordered. Shipping and custom lengths are typically additional.
